NDT Part Sorting / Screening - Services

High Volume Internal Inspection with X-Ray & CT

When a product crisis, containment, or isolation happens; our internal Xray & CT part sorting service supports the introduction of only passing product into the supply chain with indisputable evidence.

QUARANTINE SORTING

Lot sorting allows for:

  • CS1 Validation
  • Failure rates to be known
  • Production to continue
  • 3rd Party segregation
  • Reduced scrap costs

OVERCHECK SORTING

Batch sorting allows for:

  • CS2 Validation
  • JIT production to continue
  • 8D corrective action close-out
  • Decisions to be made
  • Tooling to be altered
Certified NDT part sorting and quality inspection services at a high-volume laboratory facility
Our consultation process makes working together simple and efficient

PHASE ONE

TECHNICAL DISCUSSION

Services begin by having a quick general discussion to see if we can help.  Typically our services are a fit for high value quarantined lots or when production batches need overcheck.  If the fit is right and mutual NDA’s are in place when required, a technical discussion takes place with key product stakeholders and our team surrounding the goals for sorting & segregation.

PHASE TWO

SYSTEM MATCHING

Our lab has a wide variety of conveyor and large vault X-Ray and CT scanning based imaging systems at our disposal.  Energies include; 100kv, 150kv, 160kv, 225kv, 300kv, 450kv, and 3Mev.  This diversity along with custom fixture development and experienced workflows allows us to efficiently match up the right tool with the project for providing repeatable high quality results.

High-volume emergency crisis isolation and sorting services using advanced X-ray and CT scanning for manufacturing defects.
High-volume parts isolation and screening services utilizing industrial X-ray and CT scanning technologies.
Third-party supplier containment services providing high-volume CS1 and CS2 quality sorting with CT and X-ray inspection.

PHASE THREE

PASS / FAIL (SEGREGATION &  CONTAINMENT)

Based upon the projects agreed upon written scope, we inspect and pass / fail the results in real-time at the imaging system or offline after imaging is completed at our 15,000 sq/ft climate-controlled facility.

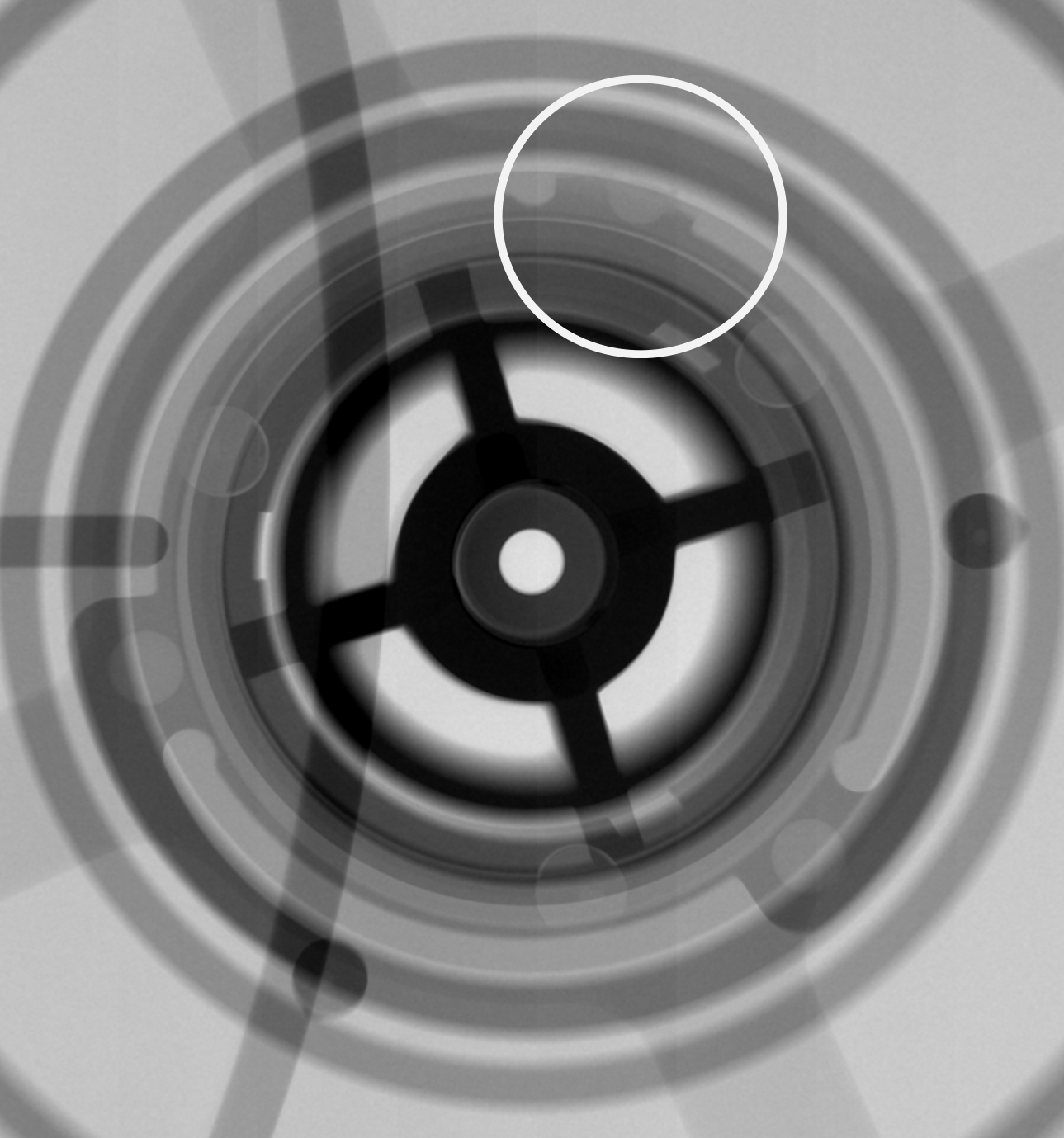

(2D) X-RAY INSPECTION

Quick, cost effective, overlapping view, requires one single image.

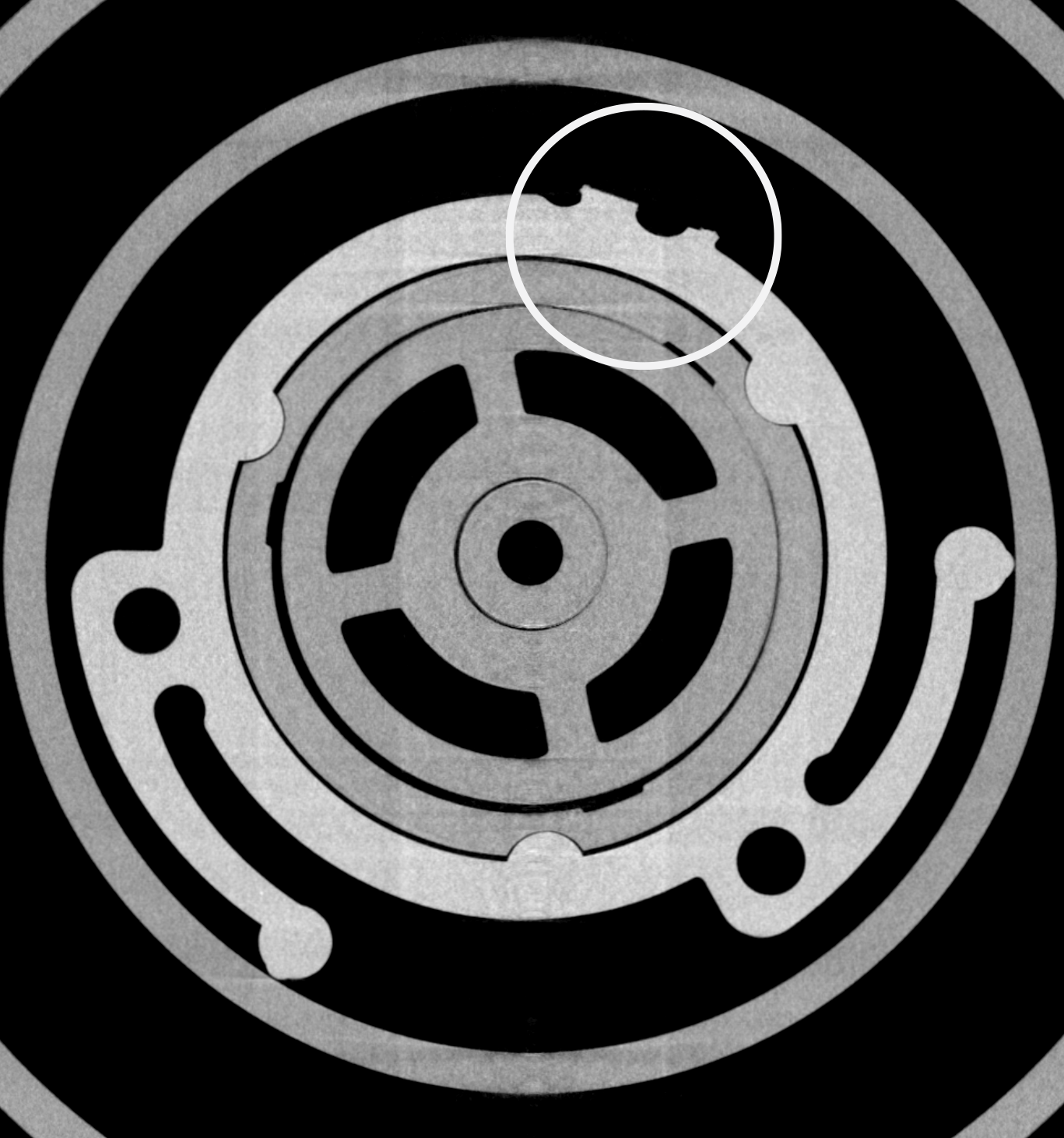

(3D) CT INSPECTION

Slower, high costs, virtual section view, requires hundreds of images.

Real-time 2D digital radiography and radiographic X-ray inspection for rapid pass-fail part sorting and screening of castings, welds, battery assemblies, gaskets, and electronic seals to find short failures and cracked solder joints.
Industrial 3D CT scanning, micro-CT tomography, and X-ray inspection for internal defect pass-fail part screening of castings, welds, battery assemblies, gaskets, and electronic seals to analyze failure points.

PHASE FOUR

WHAT WE GIVE YOU (INDISPUTABLE RESULTS)

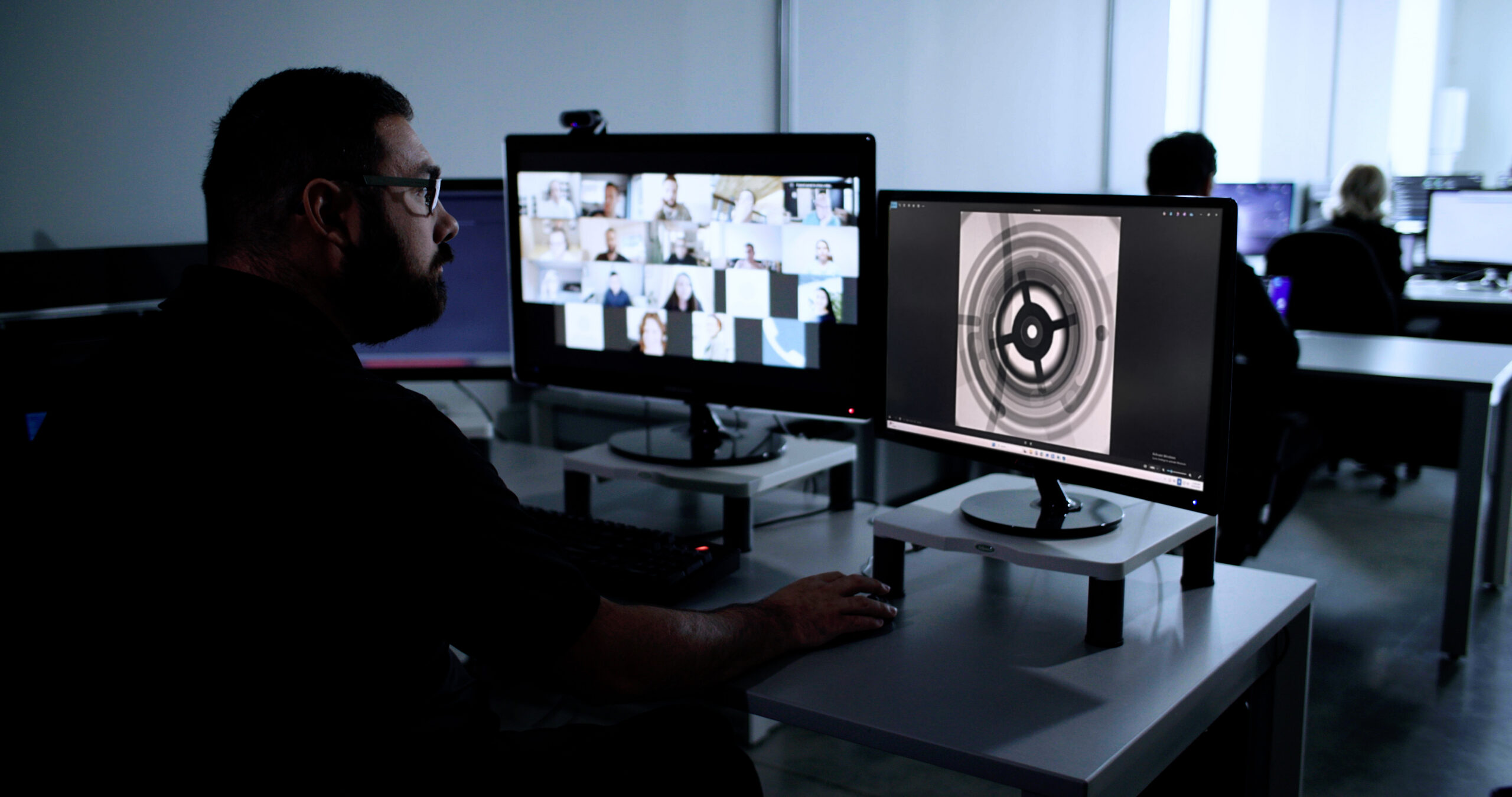

Our goal is to provide the professionals that use us; confidence in production build quality and empowerment for decisions to be made.  With every project the results are communicated regularly between our lab and the projects key decision makers over a results-based web conference.  Deliverables include:

  • Pass/Fail metrics
  • Physical Segregation
  • Defect Tagging.
  • Barcoding (add on)
  • Image saving (add on)
Certified NDT lab offering high-volume part screening and batch inspection supplier services.

Our X-Ray and CT part sorting/screening services are regularly implemented & completed for; automotive, aerospace, oil & gas, and medical device customers.

Small batch sorting : under 100 parts

Medium batch sorting : 100 to 5,000 parts

Large batch sorting : 5,000 to 1 million parts
